Analytical Instrumentation
Analytical Instrumentation Solutions
Analytical Instrumentation (AI) solutions extract and condition samples from the process pipe to ensure the analyzer receives samples that are at the correct temperature and pressure. Our Analytical Instrumentation solutions include the following application areas: Sample Extraction, Pre-Conditioning, Conditioning, Calibration & Switching, Return, and Grab Sampling.
In addition to Swagelok products such as Fittings, K Series Regulators, RHPS Regulators, Filters, PTX series Transducers, Steam Trap Test Station with universal mount, Blow Down Valves, 60 series valves, KCA Auto changeover Regulator, Hoses and Flexible Tubing, Stream Selector System and Modular Platform Components we offer the below solutions.
Few Solutions for Analytical Instrumentation Include:

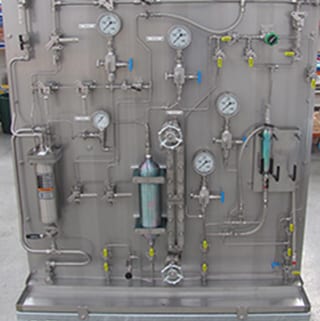

Fabrication and Assembly
We can create assemblies to meet the unique needs of your application – from idea through to finished product. Whether simple and small, or large and complex, our Swagelok team will work with you to solve your assembly needs. We can make gas distribution systems, gas analyzer shelters, sampling panels and other assemblies based on your requirement.
Grab Sampling Systems
Customizing Swagelok grab sample systems allows for safe, efficient sample capture; meeting your specific plant application needs. The panels are available in a variety of configurations and advanced features. Plus, local support ensures fast, dependable expert service.
Grab Sampling Evaluation
Improve your grab sample systems with safer, more accurate, and compliant samples. Our team of trained field engineer can identify issues affecting sample quality and opportunities for enhancing system performance by Eliminating causes of poor sample quality, Reducing required maintenance and analyzer downtime by optimizing system design.
Pre-assembled fluid sampling and control subsystems
Pre-engineered and pre-assembled fluid sampling and control subsystems bring efficiency and consistency to your operations. Use Swagelok pre-engineered subsystems to create fully documented fluid sampling and control systems without the worry of acquiring and assembling multiple parts.
Swagelok offers Field Station Module, Fast Loop Module, Calibration and Switching Module (CSM), Fluid Distribution Header (High Pressure), Low Pressure Header (LPH).
Swagelok Process Interface Valves
Swagelok process interface valves provide a smooth transition from process to instrumentation systems in a single, compact assembly. Benefits include fewer leak points and reduced size and weight compared to traditional systems.
Sample Probe Module
The Swagelok SPM is a pre-engineered solution for use in online process analysers and consists of a welded sample probe (SPW) or retractable sample probe (SPR) with a block-and-bleed sample probe valve (SPV).
